RKSB


Aluminum Ski Boat Trailers
Spring Axles

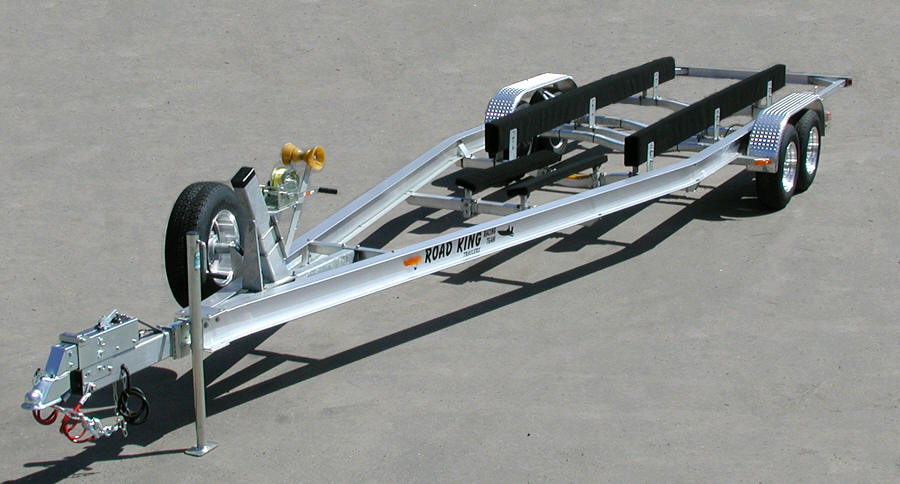

*Tandem Axle Model RKSB 22TB*




*Welded Tie Down & Rear Tail Light*



*Rear Prop Cut Out*



*Adjustable Bunks*

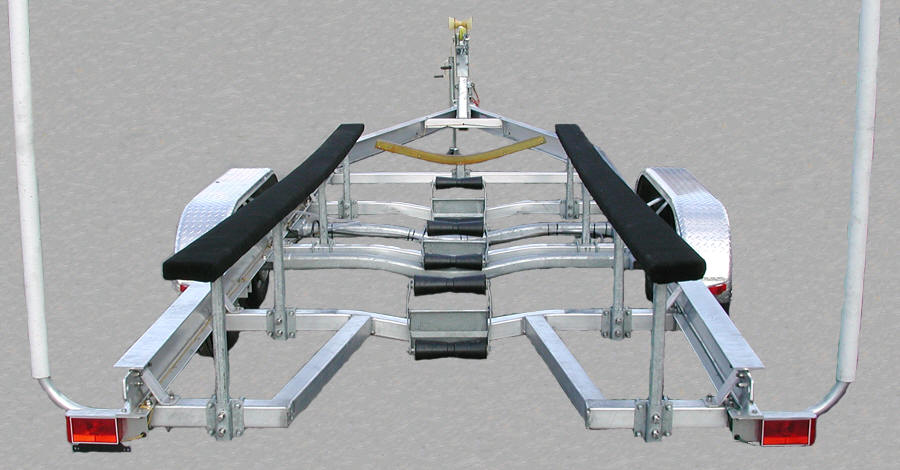

*Inboard Ski Trailer With Rear Cage*



*"Shamrock" Boats With Keel Drive*



*Race Boat Style Trailer*

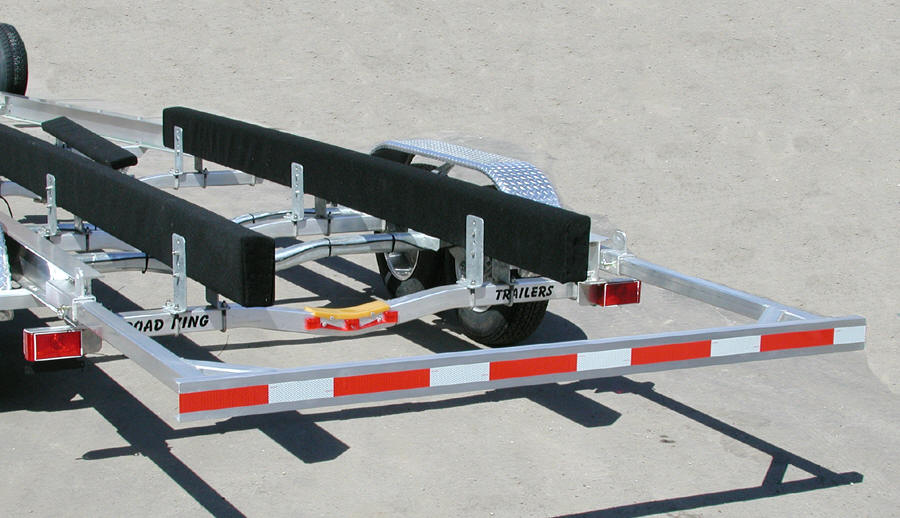

*Rear Prop Bumber For Race Boats*

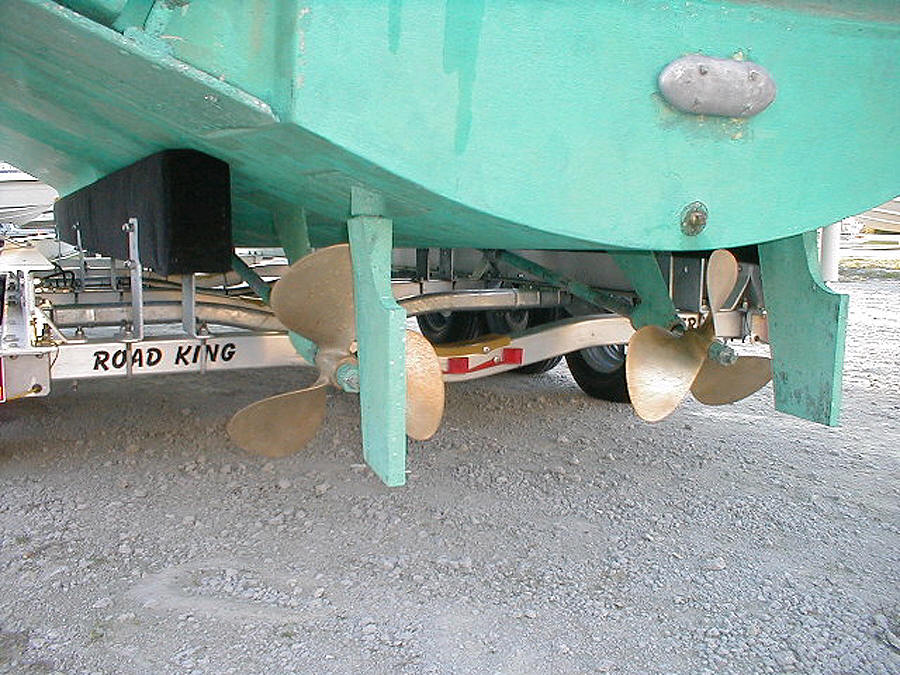

*Dual Prop Set Up*




Standard Features

*Aluminum I-Beam Frame*
*Welded Aluminum "V" Cross Members*
*Spring Axles Suspension*
*Galvanized Axles & Wheels*
*"Balanced" Tires & Wheels*
*"Marine Coat Springs*
*Vortex Hubs (6 Year Maintenance Free Warranty)*
*Radial Tires Standard On All 15" Tires*
*Galvanized U-Bolts & Hardware*
*Aluminum Diamond Plate Fenders & Carpeted Fender Boards*
*Adjustable Double 2X6 Carpeted Bunk Boards*
*Adjustable Aluminum Tube Bunk Brackets*
*LED Lights / Heat Shrink Connections*
*Rear Prop Guard*
*Galvanized PVC Guides*
*Heavy Duty Tongue Jack & Wheel*

Trailer Model Frame Width
& Size
Tire Size
GVW Net Carrying Capacity
RKSB-19 80" / 4.5 225X15D Radial 3995 LB 3200 LB
RKSB-19B 80" / 4.5 225X15D Radial 4300 LB 3500 LB
RKSB-19T 80" / 4.5 205X14C 3995 LB 3000 LB
RKSB-19TB 80" / 4.5 205X14C 6000 LB 5000 LB
RKSB-20TB 80" / 4.5 205X14C 6000 LB 5000 LB
RKSB-21TB 80" / 5.5 205X14C 7000 LB 5800 LB
RKSB-21TB 80" / 5.5 215X14C 7400 LB 6200 LB
RKSB-22TB 80" / 5.5 205X14C 7000 LB 5700 LB
RKSB-22TB 80" / 5.5 215X14C 7400 LB 6100 LB
RKSB-23TB 80" / 5.5 205X14C 7000 LB 5600 LB
RKSB-23TB 80" / 5.5 215X14C 7400 LB 6000 LB
RKSB-24TB 80" / 5.5 205X14C 7000 LB 5500 LB
RKSB-24TB 80" / 5.5 215X14C 7400 LB 5900 LB
RKSB-25TB 80" / 5.5 215X14C 7400 LB 5800 LB
RKSB-25TB2 80" / 5.5 225X15D Radial 8600 LB 7000 LB
RKSB-26TB2 80" / 5.5 225X15D Radial 8600 LB 7000 LB

T= Tandem Axle,   B= Includes Disc Brake
Brakes are required on trailers in accordance to each states brake laws.
Road King Trailers recommends brakes on all wheels.



Optional Equipment & Upgrades

*Torsion "V" Axles With Vortex Hubs*
*Stainless U-Bolt Upgrade*
*Side Mount Spare Tire Carrier*
*Side Hub Spare Tire Carrier*
*Spare Tire & Wheel*
*Aluminum Rim Upgrade*
*"Balanced" Radial Tire Upgrade*
*Swing Tongue up to 7400 LB GVW*
