RKAWAB


Aluminum Welded Aluminum Hull Boat Trailers
Spring Axles

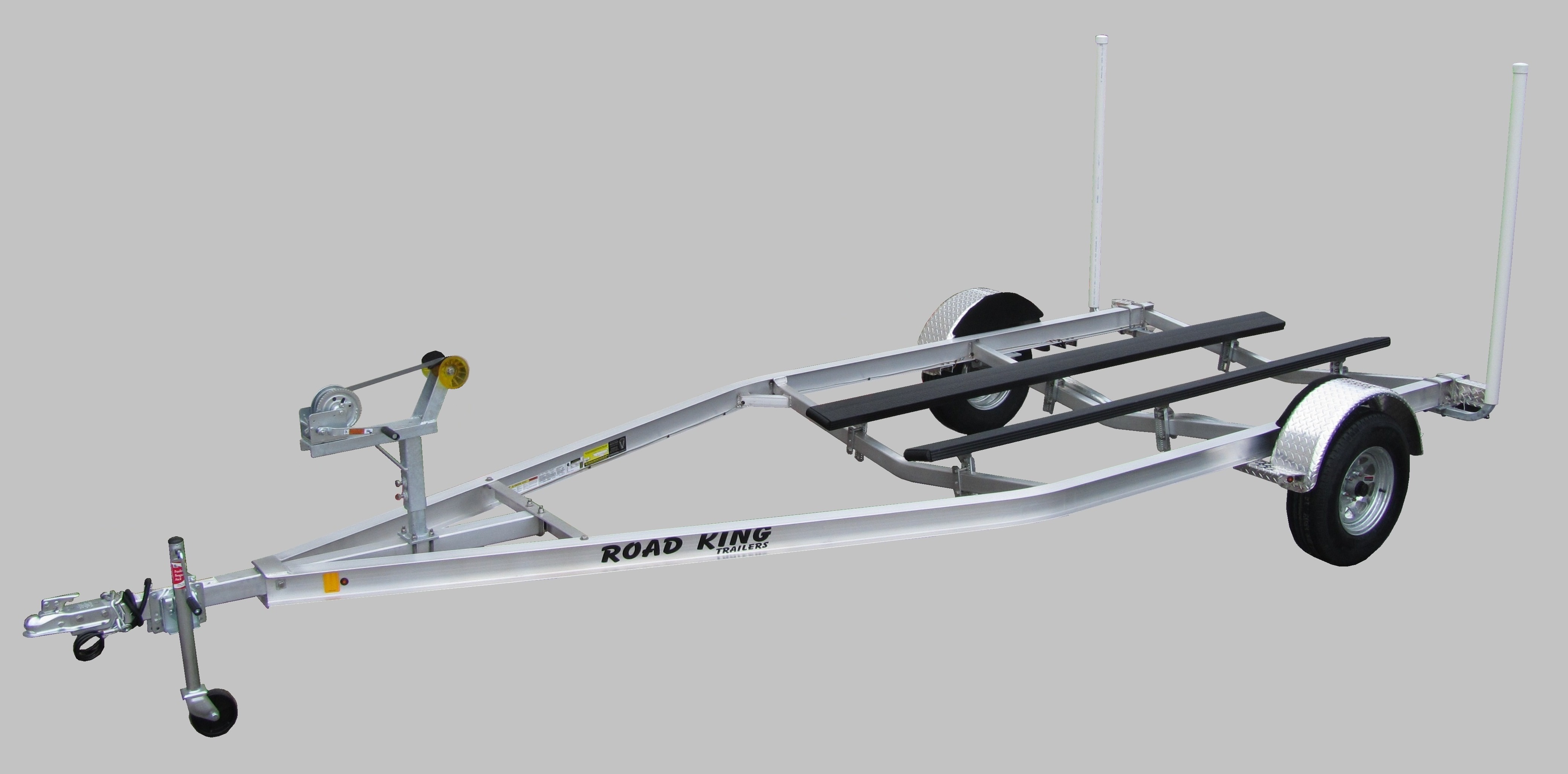

*Single Axle Model RKAWAB 18 (Shown With Optional Torsion Axle)*



Standard Features

*Spring Axle Suspension*
*Vortex Hubs (6 Year Maintenance Free Warranty)*
*Welded Aluminum I-Beam Frame & Tube Crossmembers*
*3 Aluminum "V" Crossmembers*
*Galvanized U-Bolts & Hardware*
*Galvanized Axles & Wheels*
*Galvanized PVC guides*
*LED Lights / Heat Shrink Connections*
*Aluminum Diamond Plate Fenders With Fender Boards*
*Adjustable 2X4 Or 2X6 Bunk Boards*
*Poly Bunk Skid On Bunk Boards*
*Tongue Jack & Wheel Through RKAWAB 21T (HD Tongue Jack on RKAWAB 22T & Larger)*
*Available Frame Widths: 60", 70", 80" & 84"*

Trailer Model Frame Size Tire Size GVW Net Carrying Capacity

RKAWAB-15 4.5 20X14C 3500 LB 2900 LB
RKAWAB-15B 4.5 20X14C 3500 LB 2900 LB

RKAWAB-16 4.5 20X14C 3500 LB 2900 LB
RKAWAB-16B 4.5 20X14C 3500 LB 2900 LB

RKAWAB-17 4.5 20X14C 3500 LB 2900 LB
RKAWAB-17B 4.5 20X14C 3500 LB 2900 LB

RKAWAB-18 4.5 20X14C 3500 LB 2900 LB
RKAWAB-18B 4.5 20X14C 3500 LB 2900 LB
RKAWAB-18T 4.5 20X14C 3995 LB 3000 LB
RKAWAB-18TB 4.5 20X14C 6000 LB 5000 LB

RKAWAB-19 4.5 20X14C 3500 LB 2900 LB
RKAWAB-19B 4.5 20X14C 3500 LB 2900 LB
RKAWAB-19T 4.5 20X14C 3995 LB 3000 LB
RKAWAB-19TB 4.5 20X14C 6000 LB 4900 LB

RKAWAB-20 4.5 20X14C 3500 LB 2900 LB
RKAWAB-20B 4.5 20X14C 3500 LB 2900 LB
RKAWAB-20T 4.5 20X14C 3995 LB 3000 LB
RKAWAB-20TB 4.5 20X14C 6000 LB 4900 LB

RKAWAB-21 4.5 21X14C 3700 LB 3000 LB
RKAWAB-21B 4.5 21X14C 3700 LB 3000 LB
RKAWAB-21T 4.5 20X14C 3995 LB 3000 LB
RKAWAB-21TB 4.5 20X14C 6000 LB 4900 LB

RKAWAB-22T 5.5 20X14C 3995 LB 3000 LB
RKAWAB-22TB 5.5 20X14C 7000 LB 5700 LB

RKAWAB-23TB 5.5 20X14C 7000 LB 5600 LB

RKAWAB-24TB 5.5 20X14C 7000 LB 5500 LB
T= Tandem Axle,   B= Includes Disc Brake
Brakes are required on trailers in accordance to each states brake laws.
Road King Trailers recommends brakes on all wheels.
NOTE:  84" frame width are over 102" width and may require an "over width" permit in your state.



Optional Equipment & Upgrades

*Torsion "V" Axles With Vortex Hubs*
*Stainless U-Bolt Upgrade*
*Side Mount Spare Tire Carrier*
*Side Hub Spare Tire Carrier*
*Spare Tire & Wheel*
*Aluminum Rim Upgrade*
*"Balanced" Radial Tire Upgrade*
*Swing Tongue up to 7400 LB GVW*
