RKABV

Aluminum Welded Bass Boat Trailers
Spring Axles

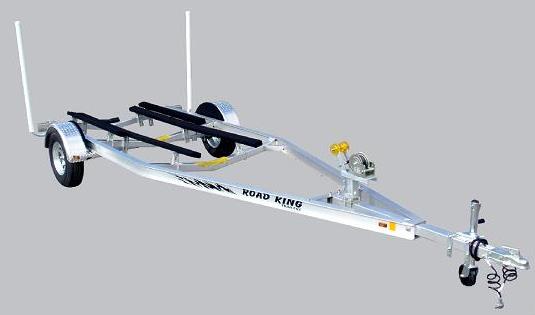

*Single Axle Model RKABV 17 (Shown With Stablizer Bunks)*



Standard Features

*Spring Axle Suspension*
*Vortex Hubs (6 Year Maintenance Free Warranty)*
*Welded Aluminum I-Beam Frame*
*Three Welded Aluminum Tube Cross Members*
*Galvanized U-Bolts & Hardware*
*Galvanized Axles & Wheels*
*Galvanized PVC guides*
*LED Lights / Heat Shrink Connections*
*Aluminum Diamond Plate Fenders With Fender Boards*
*Adjustable Carpeted 2X4 Or 2X6 Bunk Boards (One Set)*
*Rear Welded 12" Keel Roller*
*Tongue Jack & Wheel*
*Available Frame Widths: 60", 70", 80" & 84"*
*Short Bass Boat Style Winch Stand / 1600 LB Winch & Bell Roller*

Trailer Model Frame Size Bunk Length Tire Size GVW Net Carrying Capacity
RKABV 16 4.5 9' 6" 205X14C 3500 LB 2900 LB
RKABV 16B 4.5 9' 6" 205X14C 3500 LB 2900 LB
RKABV 17 4.5 9' 6" 205X14C 3500 LB 2900 LB
RKABV 17B 4.5 9' 6" 205X14C 3500 LB 2900 LB
RKABV 17 4.5 9' 6" 215X14C 3700 LB 3100 LB
RKABV 17B 4.5 9' 6" 215X14C 3700 LB 3100 LB
RKABV 18 4.5 9' 6" 205X14C 3500 LB 2900 LB
RKABV 18B 4.5 9' 6" 205X14C 3500 LB 2900 LB
RKABV 18 4.5 9' 6" 215X14C 3700 LB 3100 LB
RKABV 18B 4.5 9' 6" 215X14C 3700 LB 3100 LB
RKABV 18T 4.5 9' 6" 205X14C 3995 LB 3000 LB
RKABV 18TB 4.5 9' 6" 205X14C 6000 LB 4900 LB
RKABV 19 4.5 10' 6" 215X14C 3700 LB 3100 LB
RKABV 19B 4.5 10' 6" 215X14C 3700 LB 3100 LB
RKABV 19T 4.5 10' 6" 205X14C 3995 LB 3000 LB
RKABV 19TB 4.5 10' 6" 205X14C 6000 LB 4900 LB
RKABV 20 4.5 10' 6" 215X14C 3700 LB 3100 LB
RKABV 20B 4.5 10' 6" 215X14C 3700 LB 3100 LB
RKABV 20T 4.5 10' 6" 205X14C 3995 LB 3000 LB
RKABV 20TB 4.5 10' 6" 205X14C 6000 LB 4900 LB
RKABV 21 4.5 11' 6" 215X14C 3700 LB 3100 LB
RKABV 21B 4.5 11' 6" 215X14C 3700 LB 3100 LB
RKABV 21T 4.5 11' 6" 205X14C 3995 LB 3000 LB
RKABV 21TB 4.5 11' 6" 205X14C 6000 LB 4900 LB
T= Tandem Axle,   B= Includes Disc Brake
Brakes are required on trailers in accordance to each states brake laws.
Road King Trailers recommends brakes on all wheels.
NOTE:  84" frame width are over 102" width and may require an "over width" permit in your state.



Optional Equipment & Upgrades

*Torsion "V" Axles With Vortex Hubs*
*Stainless U-Bolt Upgrade*
*2 or 3 Cross Member Outside Stabilizer Bunks*
*Additional Crossmember*
*Side Hub Spare Tire Carrier*
*Spare Tire & Wheel*
*Aluminum Rim Upgrade*
*"Balanced" Radial Tire Upgrade*
*Swing Tongue up to 7400 LB GVW*
