RKGES & RKGV

Galvanized Skiff & Jon Boat Trailers
For Flat & Slight V-Hull Boats

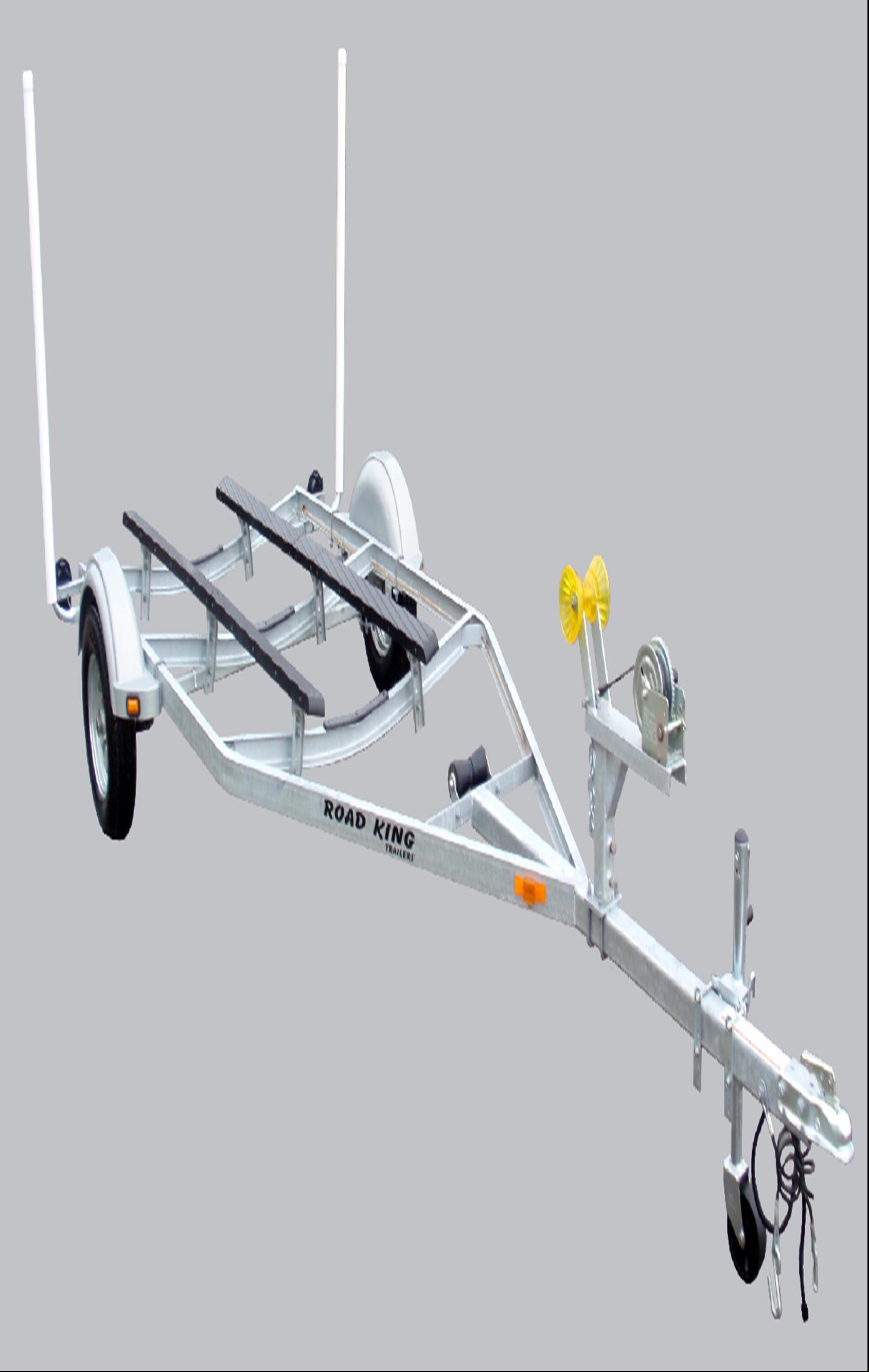

*Single Axle Model RKGV 1660*

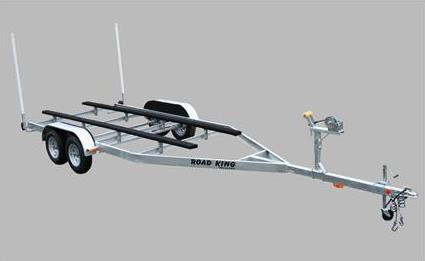

*Tandem Axle Model RKGS 23-25T*



Standard Features

*Spring Axle Suspension*
*Vortex Hubs (6 Year Maintenance Free Warranty)*
*Adjustable Long Bunks*
*Adjustable Roller Behind Tongues on RKG & RKGV Models*
*V-Frames Have Pads on Each Crossmember*
*Galvanized U-Bolts & Hardware*
*Galvanized Axles & Wheels*
*Galvanized Fenders on 12" tires / Adjustable Undercarriage*
*Adjustable Black Poly Fenders on Single Axle Trailers With 13" & 14" Tires*
*Aluminum Diamond Plate Fenders With Fender Boards on Tandem Axles*
*Galvanized PVC Guides*
*LED Lighting / Heat Shrink Connections*
*Tongue Jack & Wheel*

Trailer Model Frame Width
& Size		 Tire Size GVW Net Carrying Capacity
RKGES 14 48" / 3 4.80X12B 1560 LB 1200 LB
RKGES 14 48" / 3 5.30X12C 2090 LB 1600 LB
RKGES 16 48" / 3 5.30X12C 2090 LB 1600 LB
RKGES 16 48" / 3 175X13C 2500 LB 1900 LB
RKGES 17 60" / 3 5.30X12C 2090 LB 1600 LB
RKGES 17 60" / 3 175X13C 2500 LB 1900 LB
RKGES 18 60" / 3 175X13C 2500 LB 1900 LB
RKG-1660 60" / 3 175X13C 2500 LB 2000 LB
RKG-1860 60" / 3 175X13C 2500 LB 2000 LB
RKG-1870 70" / 4 205X14C 3500 LB 2800 LB
RKG-1880 80" / 4 205X14C 3500 LB 2800 LB
RKG-2070 70" / 4 205X14C 3500 LB 2800 LB
RKG-2080 80" / 4 205X14C 3500 LB 2800 LB
RKG-2080T 80" / 4 205X14C 3995 LB 3000 LB
RKG-2080TB 80" / 4 205X14C 5000 LB 4000 LB
RKGS 23-25T 84" / 5 205X14C 3995 LB 2800 LB
RKGS 23-25TB 84" / 5 205X14C 7000 LB 5800 LB
RKGV-1560 60" / 3 175X13C 2500 LB 2000 LB
RKGV-1660 60" / 3 175X13C 2500 LB 2000 LB
RKGVE-1670 70" / 3 175X13C 2500 LB 2000 LB
RKGVE-1760 60" / 3 175X13C 2500 LB 2000 LB
RKGVE-1770 70" / 3 175X13C 2500 LB 2000 LB
RKGVE-1770 70" / 3 205X14C 2500 LB 2000 LB
RKGV-1860 60" / 3 175X13C 2500 LB 2000 LB
RKGV-1860 60" / 3 205X14C 2700 LB 2200 LB
RKGVE-1870 70" / 3 205X14C 2700 LB 2200 LB
RKGV-1870 70" / 4 205X14C 3500 LB 2800 LB
RKGV-1880 80" / 4 205X14C 3500 LB 2800 LB
RKGV-1970 70" / 4 205X14C 3500 LB 2800 LB
RKGV-1980 80" / 4 205X14C 3500 LB 2800 LB
RKGV-2070 70" / 4 205X14C 3500 LB 2800 LB
RKGV-2080 80" / 4 205X14C 3500 LB 2800 LB
RKGV-2080T 80" / 4 205X14C 3995 LB 3000 LB
RKGV-2080TB 80" / 4 205X14C 5000 LB 4000 LB
RKGV-2180 80" / 4 205X14C 3500 LB 2750 LB
RKGV-2180T 80" / 4 205X14C 3995 LB 3000 LB
RKGV-2180TB 80" / 4 205X14C 5000 LB 4000 LB

T= Tandem Axle,   B= Includes Disc Brake
Brakes are required on trailers in accordance to each states brake laws.
Road King Trailers recommends brakes on all wheels.
NOTE:  84" frame width are over 102" width and may require an "Over width permit" in your state.



Optional Equipment & Upgrades

*Additional Set of 2X6 Stabilizer Bunks & Single U-Bolt for 2, 3, & 4 Cross Member*
*Exchange Carpet to Poly Bunk Skid*
*Add Plastic Bunk Strops to top of 2X4 Upright Bunks*
*Side Mount Spare Tire Carrier*
*Side Hub Spare Tire Carrier*
*Spare Tire & Wheel*
*Aluminum Rim Upgrade*
*"Balanced" Radial Tire Upgrade*
*Swing Tongue up to 7400 LB GVW*
