Parts Catalog


Lights & Wiring


Check each trailer light to make sure they are working properly before each towing. If lights are not working properly check bulbs or wiring and take corrective measures before towing. Submerging the lights in water can cause corrosion. The contacts may become corrosive and therefore not allowing electric current to the lights. A simple movement of the light against the contacts will usually re-gain light function. Electrical grease comes on the lights from the factory, which helps corrosion but will need re-application over time.
Wire Code For Trailer System: Brown wire=tail / running lights. Yellow wire=left turn signal. Green wire= right turn signal. Red wire (if equipped) =hook into back up lights of towing vehicle for “disc brake” equipped trailers. White wire=ground.



PART # LIGHTS & WIRING RETAIL $
ELK ECONOMY LIGHT KIT (2 ROUND TAIL LIGHTS, 2 DLSASC1, TWH25-4,  $58.95
SLK STANDARD LIGHT KIT (2 LP T-LIGHT, 4 DLSASC1, 2 DLSRSC1, 1 DLSRLB1,  TWH40-4 OR TWH40-5) $110.95
LEDLK LED LIGHT KIT (1 LEDTLL, 1 LEDTLR, 4 LEDBA, 2 LEDBR, 1 LEDRLB, TWH40-4 OR TWH40-5) $149.95
DLSLT1 DRY LAUNCH SUBMERSIBLE LOW PROFILE TAIL LIGHT  (SP8RBW-ELX1)  LEFT SIDE $17.95
DLSRT1 DRY LAUNCH SUBMERSIBLE LOW PROFILE TAIL LIGHT  (SP8RBW-ERX1)  RIGHT SIDE $17.95
DLRLT1 DRY LAUNCH SUBMERSIBLE ROUND BLACK TAIL LIGHT  (801BBX-99X2)  LEFT SIDE $15.95
DLRRT1 DRY LAUNCH SUBMERSIBLE ROUND BLACK TAIL LIGHT  (801BBX-99X2)  RIGHT SIDE $15.95

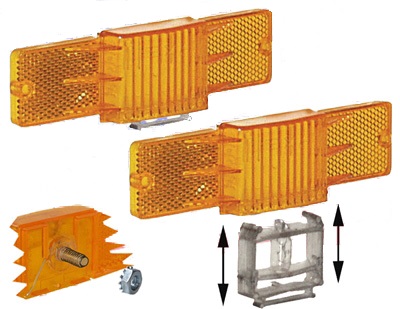

DLSASC1 DRY LAUNCH SUBMERSIBLE AMBER SIDE CLEARANCE LIGHT (203 ARS 9811)  $6.25
DLSRSC1 DRY LAUNCH SUBMERSIBLE RED SIDE CLEARANCE LIGHT (203 RRS 9811)  $6.25
DLSASC2 DRY LAUNCH SUBMERSIBLE AMBER SIDE CLEARANCE LIGHT (203 AXS 9911) NO REFLECTOR $5.95
DLSRSC2 DRY LAUNCH SUBMERSIBLE RED SIDE CLEARANCE LIGHT (203 RXS 9911) NO REFLECTOR $5.95
DLSRLB1 DRY LAUNCH SUBMERSIBLE RED REAR BENT LIGHT BAR ( 327 ) $14.95

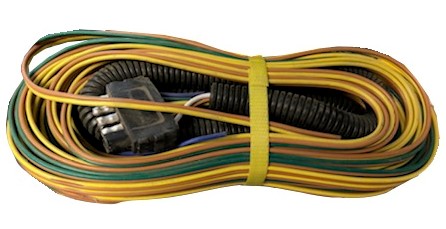

TWH25-4 TRAILER WIRE HARNESS  25 FEET  4 POLE $13.95
TWH40-4 TRAILER WIRE HARNESS  40 FEET  4 POLE $20.95
TWH40-5 TRAILER WIRE HARNESS  40 FEET  5 POLE $21.95
HST HEAT SHRINK TUBE 2 1/2" LENGTH X 3/16" $0.12
2218BC 22-18 GA RED INSULATED BUTT CONNECTOR $0.50
GFWC1 GREASE FILLED WIRE CONNECTOR -- FOR ALUMINUM TRAILERS $1.25
PLTB1 PLASTIC LICENSE TAG BRACKET $0.99
18WHC 1/8" BLACK WIRE HARNESS CLAMP $0.25
38WHC 3/8" BLACK WIRE HARNESS CLAMP $0.25
BCT14 14 1/2" BLACK CABLE TIE H/D $0.50
TMCT8 8" TREE MOUNT CABLE TIE $0.50
RSL2A 2" ROUND INSET AMBER SIDE LIGHT WITH GROMMET & PLUG $5.95
RSL2R 2" ROUND INSET RED SIDE LIGHT WITH GROMMET & PLUG $5.95
RECSLA RECTANGULAR INSET AMBER SIDE LIGHT WITH GROMMET & PLUG $4.95
RECSLR RECTANGULAR INSET RED SIDE LIGHT WITH GROMMET & PLUG $4.95
RECSLGR RECTANGULAR INSET LIGHT GROMMET $1.25
RECSLPLUG RECTANGULAR INSET LIGHT MALE 2 WAY PLUG $0.95
LEDAR "LED" TAPE AMBER REFLECTOR $0.95
LEDSLA "LED" AMBER SIDE LIGHT (STUD MOUNT) $7.95
LEDSLR "LED" RED SIDE LIGHT (STUD MOUNT) $7.95
LEDRECSLA "LED" RECTANGULAR INSET AMBER SIDE LIGHT WITH GROMMET & PLUG $7.95
LEDRECSLR "LED" RECTANGULAR INSET RED SIDE LIGHT WITH GROMMET & PLUG $7.95

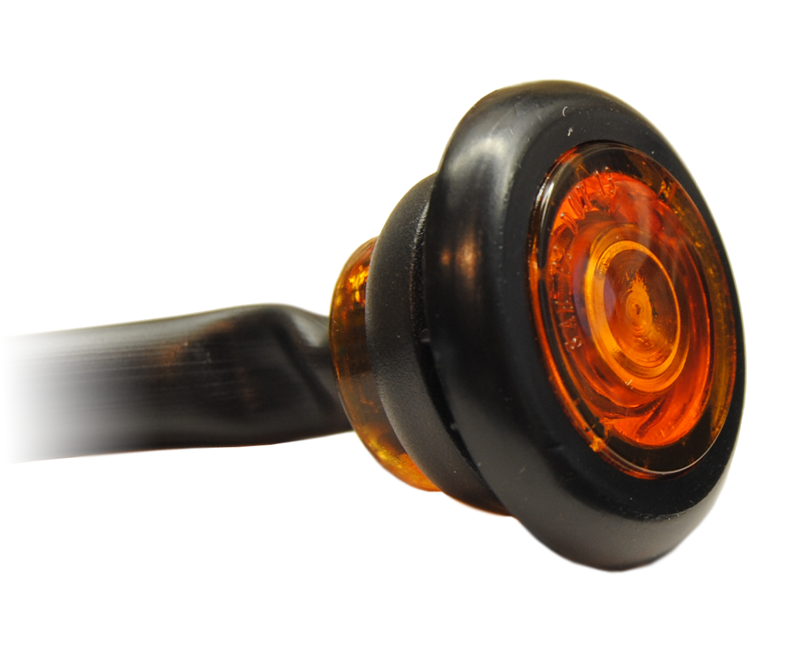

LEDBA "LED" BULLET AMBER SIDE LIGHT WITH GROMMET & PLUG $6.95
LEDBR "LED" BULLET RED SIDE LIGHT WITH GROMMET & PLUG $6.95
LEDRLB "LED" REAR LIGHT BAR $19.95

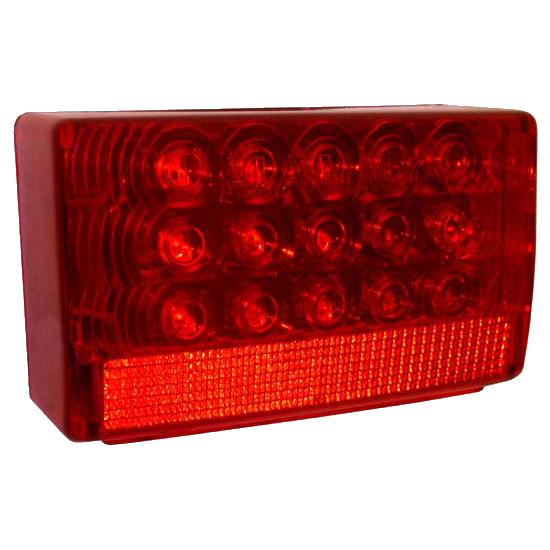

LEDTLR "LED" RECTANGULAR REAR TAIL LIGHT - RIGHT SIDE $29.95
LEDTLL "LED" RECTANGULAR REAR TAIL LIGHT - LEFT SIDE WITH TAG LIGHT $35.95
LEDRSL2A "LED" 2" ROUND INSET AMBER LIGHT WITH GROMMET & PLUG $7.95
LEDRSL2R "LED" 2" ROUND INSET RED LIGHT WITH GROMMET & PLUG $7.95

                            NOTE: PRICES SUBJECT TO CHANGE WITHOUT NOTICE
