Parts Catalog


Fenders & Undercarriages


Note: On aluminum fenders all fender holes will need to be drilled (unless ordering the slotted fenders).
When ordering poly fenders please have tire size & shape of lights inset in the fender. If you have round lights and 13" tires you will need part# SPF13. If you have rectangular lights & 13" tires you will need part # SPFTD13 or # BPFTD13. If you have rectangular lights & 14" tires you will need part # SPFTD14 or # BPFTD14.

When ordering undercarriages, if replacing one side we will need overall length, length of steps and hanger dimensions are like to ensure we get you the correct part.



PART # FENDERS RETAIL $
AFSA1314 13" & 14" ALUMINUM DIAMOND PLATE SINGLE AXLE FENDER 9X15X31"(NO SLOT) $42.95
AFSAS1314S 13" & 14" ALUMINUM DIAMOND PLATE SINGLE AXLE FENDER 9X15X31" (SLOTTED SPRING) $43.95
AFSAS1314T 13" & 14" ALUMINUM DIAMOND PLATE SINGLE AXLE FENDER 9X15X31" (SLOTTED TORSION) $43.95
AFSA15 15" ALUMINUM DIAMOND PLATE SINGLE AXLE FENDER 10X32.5X14" (NO SLOT) $44.95
AFSAS15S 15" ALUMINUM DIAMOND PLATE SINGLE AXLE FENDER 10X32.5X14" (SLOTTED SPRING) $45.95
AFSAS15T 15" ALUMINUM DIAMOND PLATE SINGLE AXLE FENDER 10X32.5X14" (SLOTTED TORSION) $45.95
AFTA91314 13" & 14" ALUMINUM DIAMOND PLATE FENDER TANDEM FENDER 9X13X62"(NO SLOT) $81.95
AFTAS91314S 13" & 14" ALUMINUM DIAMOND PLATE FENDER TANDEM FENDER 9X13X62"(SLOTTED SPRING) $81.95
AFTAS91314T 13" & 14" ALUM DIAMOND PLATE FENDER TANDEM FENDER 9X13X62"(SLOTTED TORSION) $81.95
AFTA15  15" ALUMINUM DIAMOND PLATE TANDEM AXLE FENDER 10X14X68" .100 (NO SLOT) $89.95
AFTA15S 15" ALUMINUM DIAMOND PLATE TANDEM AXLE FENDER 10X14X68" .100 (SLOTTED SPRING) $89.95
AFTA15T 15" ALUMINUM DIAMOND PLATE TANDEM AXLE FENDER 10X14X68" .100 (SLOTTED TORSION) $89.95
AFTA16 16" ALUMINUM DIAMOND PLATE TANDEM AXLE FENDER 10X18X74" .100 (NO SLOT) $95.95
AFTR1415 14" & 15" ALUMINUM DIAMOND PLATE TRI AXLE FENDER 10X18X102" .100 $149.95
AFTR16 16" ALUMINUM DIAMOND PLATE TRI AXLE FENDER 10X18X110" .100 $159.95

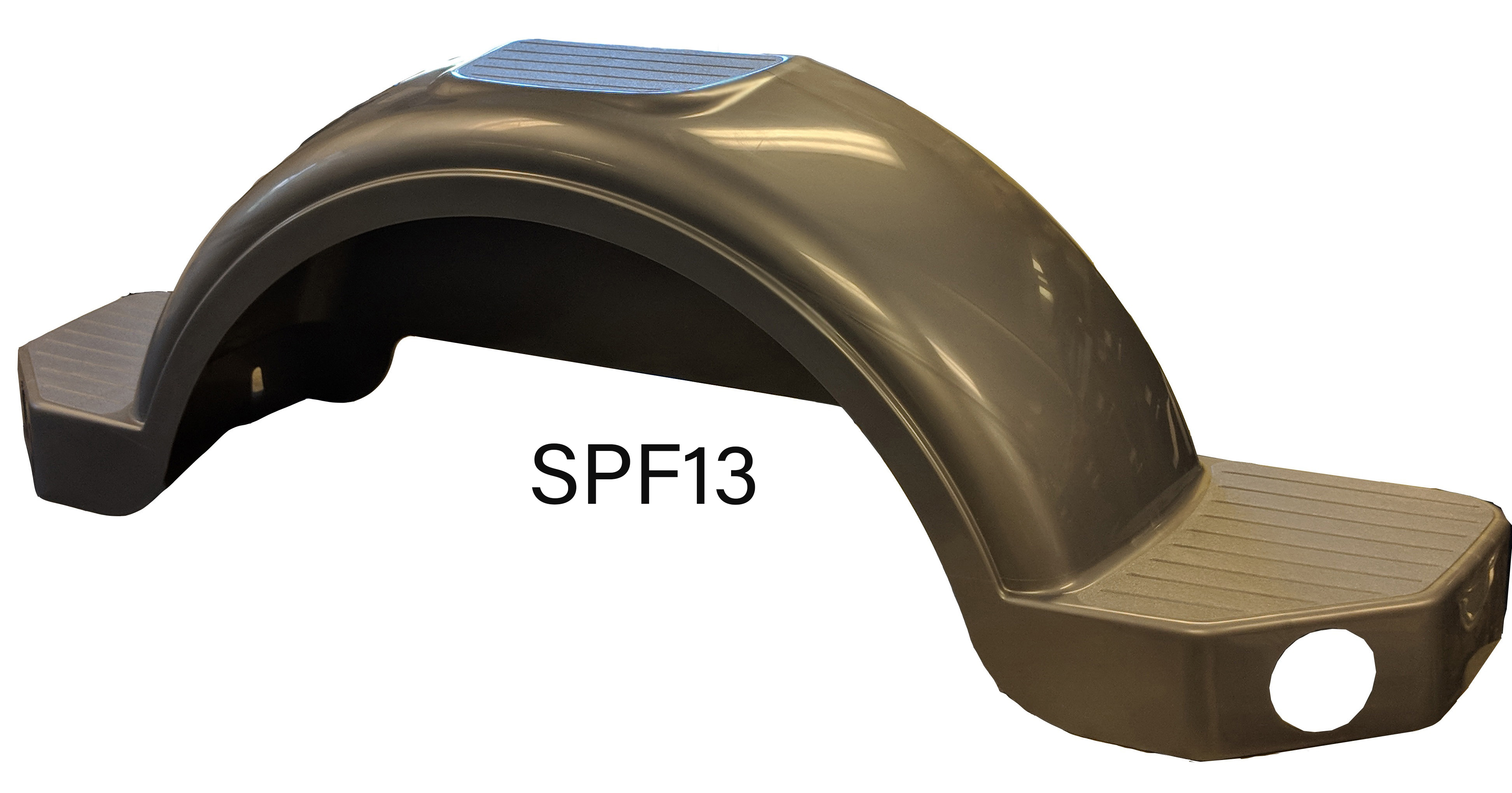

SPF13 13" & 14" SILVER POLYETHYLENE FENDERS WITH MOLDED STEPS (CEQUENT) $49.95

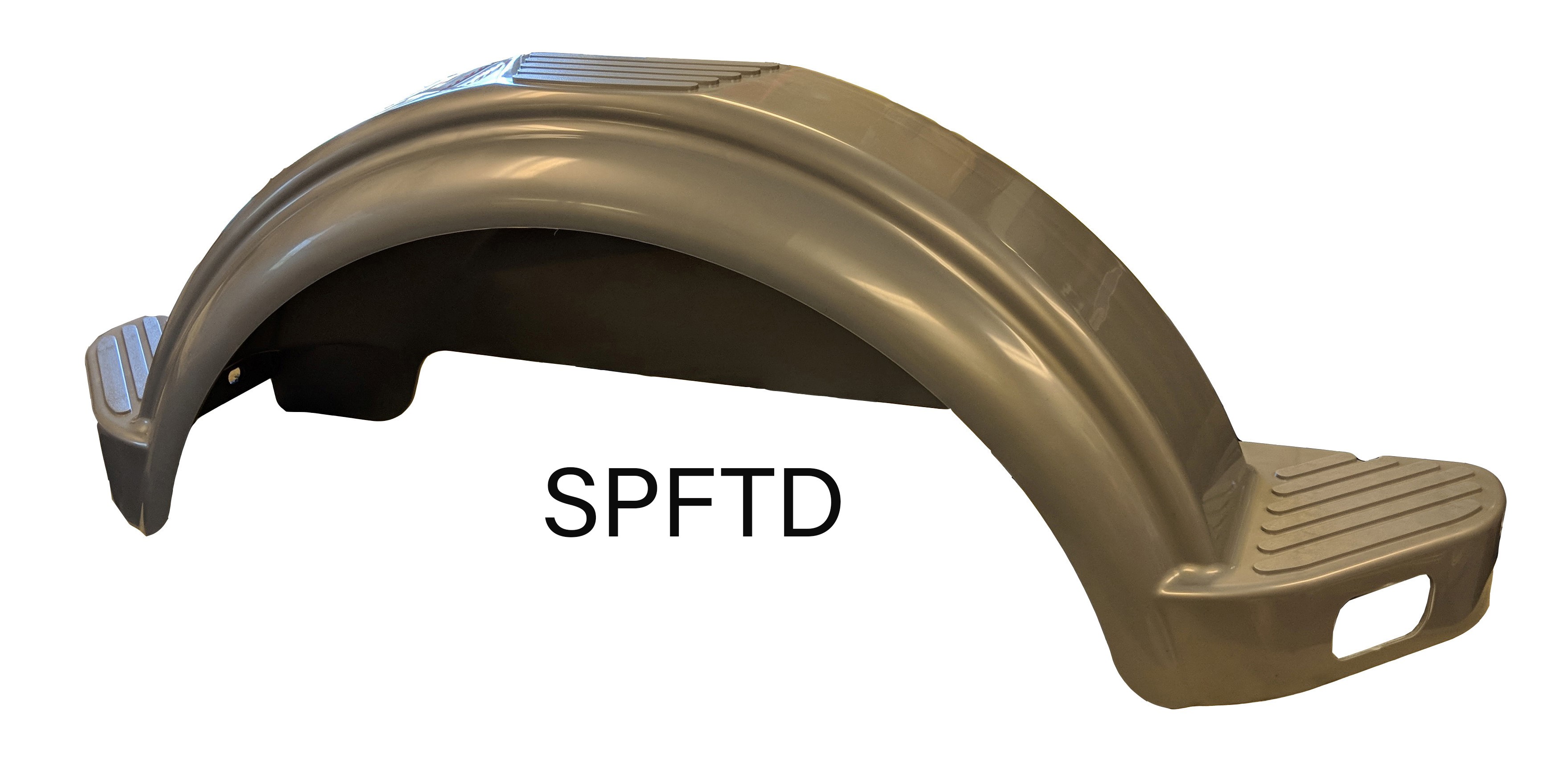

SPFTD13 13" SILVER POLYETHYLENE FENDERS WITH MOLDED STEPS (TIE DOWN 44320SUL) $36.95
BPFTD13 13" BLACK POLYETHYLENE FENDERS WITH MOLDED STEPS (TIE DOWN 44320) $36.95
SPFTD14 14" SILVER POLYETHYLENE FENDERS WITH MOLDED STEPS (TIE DOWN 44342SUL) $43.95
BPFTD14 14" BLACK POLYETHYLENE FENDERS WITH MOLDED STEPS (TIE DOWN 44342) $43.95
GFTB8-12 8" - 12" GALVANIZED ECONOMY "TOP" BOLT ON FENDER 7X23.5" $17.95
AFS8-12 8" - 12" ALUMINUM "SLOTTED" BOLT ON FENDER 7X21.5" $24.95
WORB12 WELD-ON RAW FENDER BRACKET FOR ABOVE FENDER (TOP MOUNT) $11.95
GFSA10 SINGLE AXLE GALVANIZED PONTOON FENDER 9X10X24" $23.95
AFSA10 SINGLE AXLE ALUMINUM PONTOON / WATERCRAFT FENDER 9X10X24" $32.95
GFTAPTS TANDEM AXLE GALVANIZED PONTOON FENDER 9X12X60"(SLOTTED) $51.95

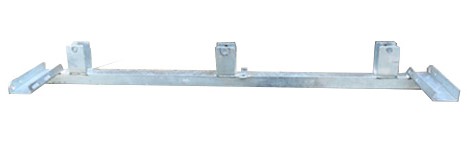

PART # UNDERCARRIAGES RETAIL $
UCG12L 12" GALVANIZED UNDERCARRIAGE ANGLE ONLY ( LEFT ) $64.95
UCG12R 12" GALVANIZED UNDERCARRIAGE ANGLE ONLY ( RIGHT ) $64.95
UCG10L 10" & 13" GALVANIZED PONTOON SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( LEFT ) $91.95
UCG10R 10" & 13" GALVANIZED PONTOON SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( RIGHT ) $91.95
UCGPT10 10" GALVANIZED PONTOON TANDEM AXLE UNDERCARRIAGE ANGLE ONLY $99.95
UCG1314L 13" & 14" GALVANIZED SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( LEFT ) $72.95
UCG1314R 13" & 14" GALVANIZED SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( RIGHT ) $72.95
UCWFG1314L 13" & 14" POLY FENDER SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( LEFT ) "CEQUENT" $89.95
UCWFG1314R 13" & 14" POLY FENDER SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( RIGHT ) "CEQUENT" $89.95
UCPFTD13L 13" TIE DOWN POLY FENDER SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( LEFT ) $66.95
UCPFTD13R 13" TIE DOWN POLY FENDER SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( RIGHT ) $66.95
UCPFTD1415L 14" & 15" TIE DOWN POLY FENDER SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( LEFT ) $75.95
UCPFTD1415R 14" & 15" TIE DOWN POLY FENDER SINGLE AXLE UNDERCARRIAGE ANGLE ONLY ( RIGHT ) $75.95
UCGTA1314 13" & 14" GALVANIZED TANDEM AXLE UNDERCARRIAGE ANGLE ONLY $99.95
UCG15L 15" GALVANIZED SINGLE AXLE UNDERCARRIAGE ANGLE ONLY (LEFT) $89.95
UCG15R 15" GALVANIZED SINGLE AXLE UNDERCARRIAGE ANGLE ONLY (RIGHT) $89.95
UCGTA15 15" GALVANIZED TANDEM AXLE UNDERCARRIAGE ANGLE ONLY $129.95
UCGTA16 16" GALVANIZED TANDEM AXLE UNDERCARRIAGE ANGLE ONLY $139.95
UCGTRA1415 14" & 15" GALVANIZED TRI AXLE UNDERCARRIAGE ANGLE ONLY $164.95
UCGTRA16 16" GALVANIZED TRI AXLE UNDERCARRIAGE ANGLE ONLY $179.95

                            NOTE: PRICES SUBJECT TO CHANGE WITHOUT NOTICE
